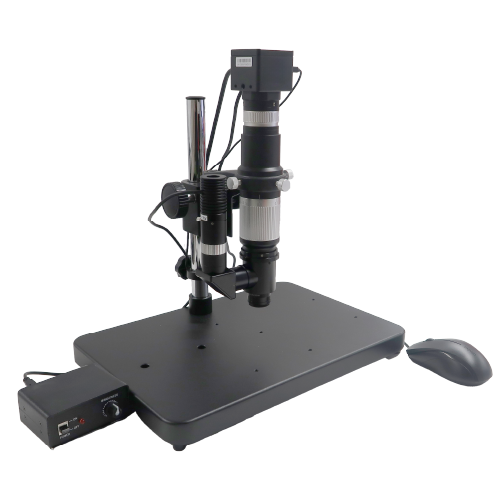

4K Microscope (Direct Monitor Connection Type)
High-performance 4K microscope (High-magnification, Coaxial illumination type)
¥ 766,000 + tax
- Free demo machine rental
- 50x－500x
- 4K
- Measurement function
Connects via HDMI or PC!
4K microscope featuring focus stacking and tiling functions.
●高解像度4Kレンズ搭載
●多機能SONYセンサー4Kカメラ搭載
●倍率：50倍～500倍
（※倍率は17インチモニタ換算の計算値）
●鏡面に近い反射率の高い平面（研磨した
金属、メッキ、シリコンウェハー、溶接
の溶け込み量の観察等）の観察に最適！
同軸照明タイプ
●静止画・動画の保存・再生可能
（16GB USBメモリ付属）
※別途4Kモニターが必要です。
（13インチなどの小型4Kモニターでは相性により映像出力されない場合もございます。）
Product Features
Clearly reproduces even subtle height differences and three-dimensional objects
(focus stacking function)
Equipped with a focus stacking function, it automatically combines images captured at multiple focal positions.
You can obtain a high-definition image that is in focus throughout with a single click.
Enables “wide-area” observation beyond the limits of the field of view
(image stitching)
*Function available only during PC control.
It supports a wide range of applications, from the microscopic observation of electronic components, circuit boards, and machined metal surfaces to research and educational use.
The rendering capability of high-resolution 4K lenses
Comparison of white and black brightness profiles (at the red circled area on the glass scale)
Conventional lens
High-resolution 4K lens
That’s why
high-definition video is possible!
Features
HDMI connection (also supports PC connection via USB)
Equipped with a 10x optical zoom lens, providing a total magnification range of 26x to 260x
Zoom lens features a latch mechanism that locks at each scale setting (ideal for measurement, as it eliminates operator-induced errors)
Arbitrary lines can be displayed.
You can display up to 10 horizontal and 10 vertical lines at arbitrary positions.
The line color can be changed.
Equipped with extensive measurement functions
Calibration and measurement can be performed without a PC.
*A glass scale for calibration is required to perform calibration.
＜Measurement items＞
- Distance measurement between two points
- 2-point area measurement
- polygon measurement
- Broken line measurement
- 2-point circle measurement
- 3-point circle measurement (diameter, circumference, area)
- 4-point specified angle measurement
etc
Specification
Specification
| Total Magnification | 50倍－500倍 *The magnification is a calculated value based on a 17-inch monitor. |
|---|---|
| Field of View | 7.5mm×4.2mm （at 50x） |
| 0.75mm×0.42mm （at 500x） | |
| Working Distance | 38mm *It remains virtually constant regardless of the magnification. |
| Image sensor | 1/1.8”CMOS |
| Pixel Size | 2.0μm×2.0μm |
| Resolutions | 3840×2160（4K） |
| Frame rate | 60fps |
Recommended PC specifications (for PC use only)
| CPU | Intel Core i5 (10th generation or newer) |
|---|---|
| Memory | 16GB or more |
| Storage | 512GB or more |
| OS | Windows11 |
| Graphics | Integrated graphics or NVIDIA GeForce RTX 2060 or higher |
Standard equipment
・AC adapter
・USB flash drive (16 GB)
*Includes PC software
・HDMI cable
・Mouse
Download
Dimension drawing
-
（pdf／70 KB）
-
（zip／667 KB）
-
（pdf／115 KB）
-
（zip／922 KB）
-
（pdf／57 KB）
-
（zip／21 KB）
-
（pdf／285 KB）
-
（zip／146 KB）
-
（pdf／127 KB）
-
（zip／2 MB）
