Simple rotary XY stage

¥ 46,000 + tax

Free demo machine rental

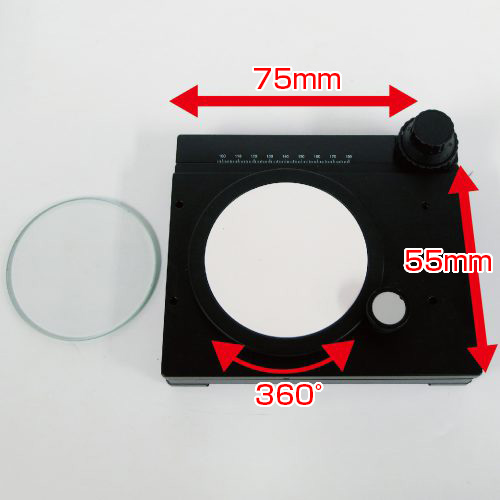

In addition to movement in the X and Y directions, the stage rotates by turning the knob!

●回転テーブルを回すことができるため対象物の側面の観察に便利
●安心の低価格
●マイクロスコープや実体顕微鏡のすべてのスタンドに取付可能

Product Features

How to use

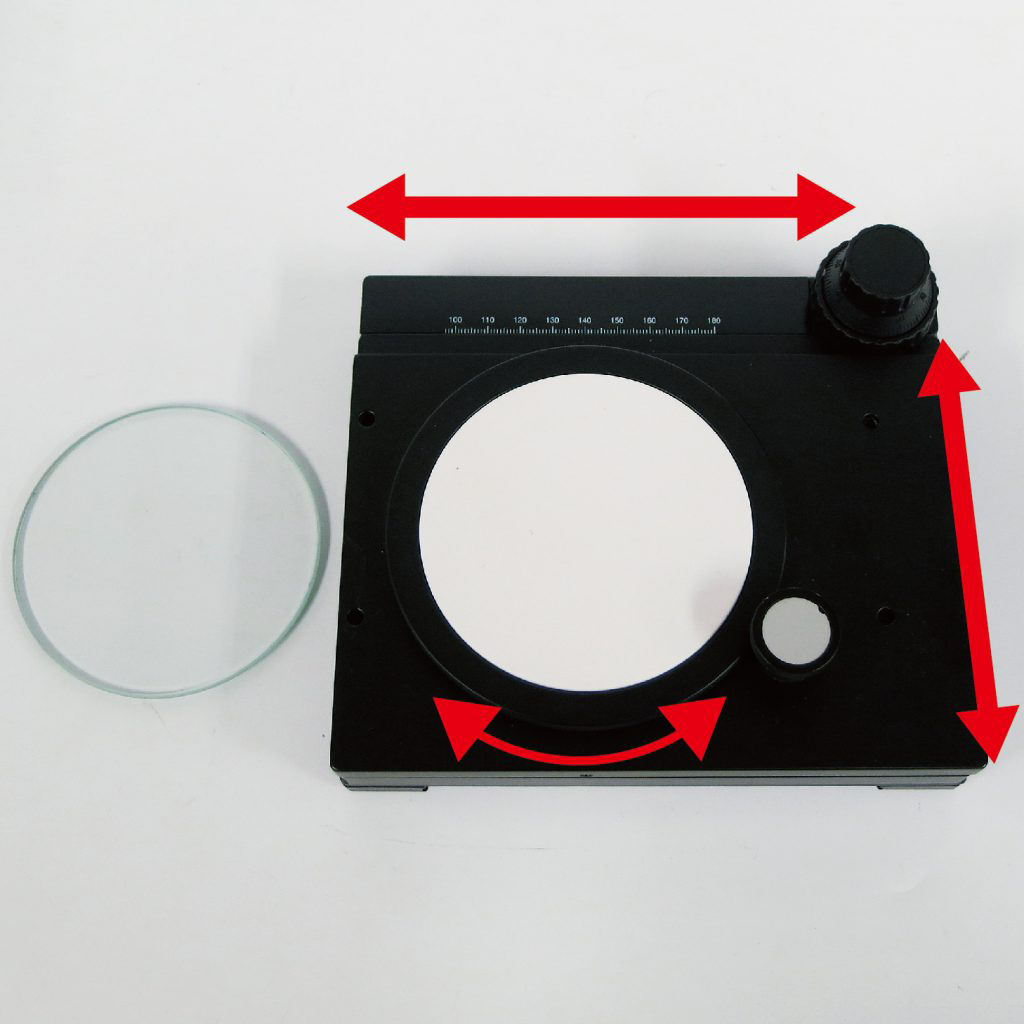

Turning the black knob allows it to be used as a standard XY stage.

Turning the white knob rotates the turntable.

How to attach

It attaches to compact stands for microscopes.
It can also be mounted on camera stands, black microscope stands,
transmitted-light stands, and stereo microscope stands.

Compatible with transmitted-light stands as well.

It comes standard with glass panels in addition to black and white acrylic panels.

It can be mounted on a transmitted-light stand.

Please view the transmitted illumination stands here.

For our microscopes, the model number ending in “G” indicates a screw-fastened type.

Can be attached to some microscope stands.

You can change the size of the circular guide via the options.

The standard size for the circular guide on the bottom of the TK180-K is φ95 mm,
but φ90 mm and φ100 mm guides are also available as options.
Please feel free to request them.

Convenient ways to use

Example of a combination of a 3D arm and a standard stand.

Combining the camera stand with a 3D arm TK180-K enables observation from an angle; furthermore, by fixing the camera in that position, you can observe the object while rotating it.
