XY stage
Simple XY stage
¥ 39,000 + tax
- Free demo machine rental
Ideal for positioning during high-magnification observation.
●安心の低価格
●マイクロスコープや実体顕微鏡のすべてのスタンドに取付可能
Product Features
How to attach a Simple XY atage
Remove the circular plate from the small base of your existing microscope or digital microscope, and fit the unit into that opening (diameter: 95 mm).
The same applies to Shodensha’s small stands.
microscope stand.
When mounting to our standard microscope stand, the unit is secured with screws.
microscope stand.
For our microscopes, the model number ending in “G” indicates a screw-fastened type.
You can change the size of the circular guide via the options.
The standard size for the circular guide on the bottom of the TK100 and TK180-K is φ95 mm,
but φ90 mm and φ100 mm guides are also available as options.
Please feel free to request them.
Specification
| Table size | 155×180ｍｍ |
|---|---|

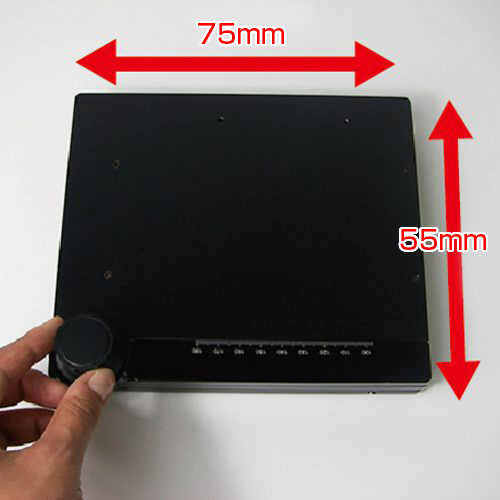

| Travel range | 75×55mm |
| Load capacity | 2kg |
Download
Dimension drawing
-
（pdf／123 KB）
-
（zip／466 KB）
