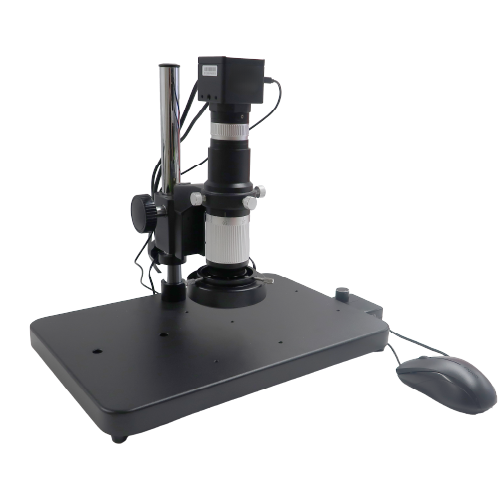

4K Microscope (Direct Monitor Connection Type)
High-performance 4K microscope
¥ 657,000 + tax
- Free demo machine rental
- 50x－500x
- 4K
- Measurement function
Connects via HDMI or PC!
4K microscope with focus stacking and tiling functions.
●高解像度4Kレンズ搭載
●多機能SONYセンサー4Kカメラ搭載
●倍率：50倍～500倍
（※倍率は17インチモニタ換算の計算値）
●静止画・動画の保存・再生可能
（16GB USBメモリ付属）
※別途4Kモニターが必要です。
（13インチなどの小型4Kモニターでは相性により映像出力されない場合もございます。）
Product Features
Clearly reproduces even subtle height differences and three-dimensional objects
(focus stacking function)
Equipped with a focus stacking function, it automatically combines images captured at multiple focal positions.
You can obtain a high-definition image that is in focus throughout with a single click.
Enables “wide-area” observation beyond the limits of the field of view
(image stitching)
*Function available only during PC control.
It supports a wide range of applications, from the microscopic observation of electronic components, circuit boards, and machined metal surfaces to research and educational use.
The rendering capability of high-resolution 4K lenses
Comparison of white and black brightness profiles (at the red circled area on the glass scale)
Conventional lens
High-resolution 4K lens
That’s why
high-definition video is possible!
Magnification / Field of view
(field of view: 7.5 mm × 4.2 mm)
(field of view: 0.75 mm x 0.42 mm)
Features
HDMI connection (also supports USB connection to a PC)
Equipped with a 10x optical zoom lens, providing a total magnification range of 50x to 500x
Zoom lens features a latch mechanism that locks at specific increments (ideal for measurement, as it eliminates operator-induced error)
Arbitrary lines can be displayed.
You can display up to 10 horizontal and 10 vertical lines at arbitrary positions.
The line color can be changed.
Equipped with extensive measurement functions
Calibration and measurement can be performed without a PC.
*A glass scale for calibration is required to perform calibration.
＜Measurement items＞
- Distance measurement between two points
- 2-point area measurement
- polygon measurement
- Broken line measurement
- 2-point circle measurement
- 3-point circle measurement (diameter, circumference, area)
- 4-point specified angle measurement
etc
仕様
全体仕様
| トータル倍率 | 50倍－500倍 ※倍率は17インチモニタ換算の計算値 |
|---|---|
| 視野範囲 | 7.5mm×4.2mm （50倍時） |
| 0.75mm×0.42mm （500倍時） | |
| 作動距離 | 38mm ※倍率に関わらずほぼ一定です。 |
| 撮像素子 | 1/1.8”CMOS |
| ピクセルサイズ | 2.0μm×2.0μm |
| 解像度 | 3840×2160（4K） |
| フレームレート | 60fps |
推奨PCスペック（PC使用時のみ）
| CPU | Intel core i5 第10世代 以上 |
|---|---|
| メモリ | 16GB以上 |
| ストレージ | 512GB以上 |
| OS | Windows11 |
| グラフィックス | 内蔵グラフィックスまたはNVIDIA GeForce RTX2060 以上 |
全て標準装備
4Kカメラ
・ACアダプタ
・USBメモリ（16GB）
※PC用アプリ含む
・HDMIケーブル
・マウス
ダウンロード
Dimension drawing
-
（pdf／70 KB）
-
（zip／667 KB）
-
（pdf／85 KB）
-
（zip／298 KB）
-
（pdf／103 KB）
-
（zip／678 KB）
-
（pdf／127 KB）
-
（zip／2 MB）
