Zoom Lens

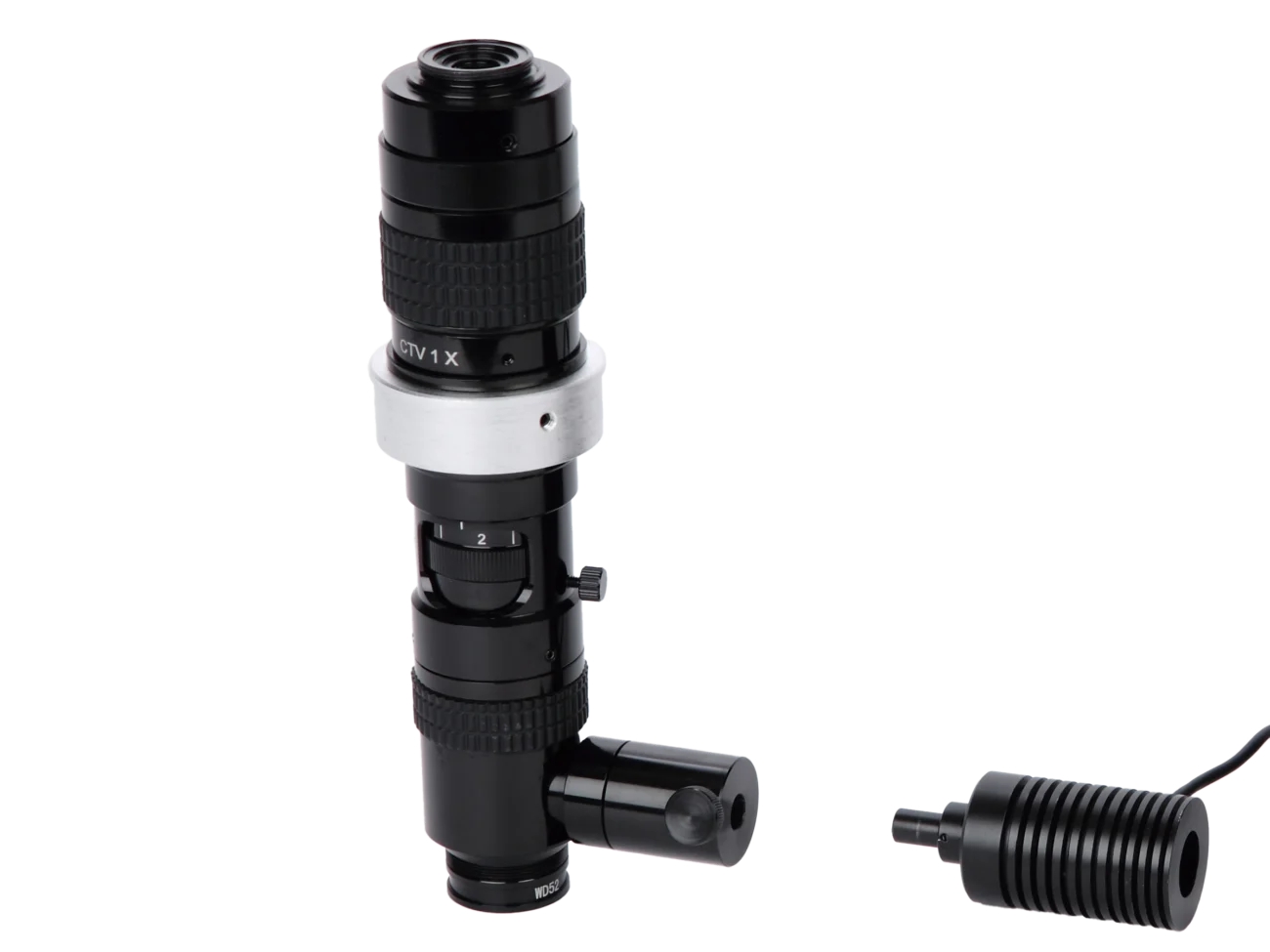

同軸照明用高倍率ズームレンズ
¥ 199,000 + tax
- Free demo machine rental
同軸照明用高倍率ズームレンズ
●同軸照明用の高倍率タレンズ
●各部ロックビス付
●金属、高反射材の観察に最適
●照明は別売
製品の特長
Differences in appearance between coaxial lighting and ring lighting
Observe the polished metal surface.
Observe the silicon wafer.
Observe metal-plated parts.
*Coaxial lighting is not suitable for objects that diffuse light, such as printed materials.
※Click here for information on objects unsuitable for coaxial lighting(in Japanese)
仕様
| 型番 | SDS-Z |
|---|---|
| 光学倍率 | 1.05x～6.75x |
| マウント | Cマウント |
| 対応カメラ | 1/2.5インチ 1/3インチ |
| 作動距離 | 52mm |
| レンズホルダ径 | φ50mm |
| 重量 | 557g |
| 総合倍率 | 75倍～430倍 ※弊社1/2インチカメラに取り付け、17インチモニタで観察した場合の倍率 |
ダウンロード
Dimension drawing
-
（pdf／140 KB）
-
（zip／3 MB）
よくある質問
オプション
