Camera shooting system

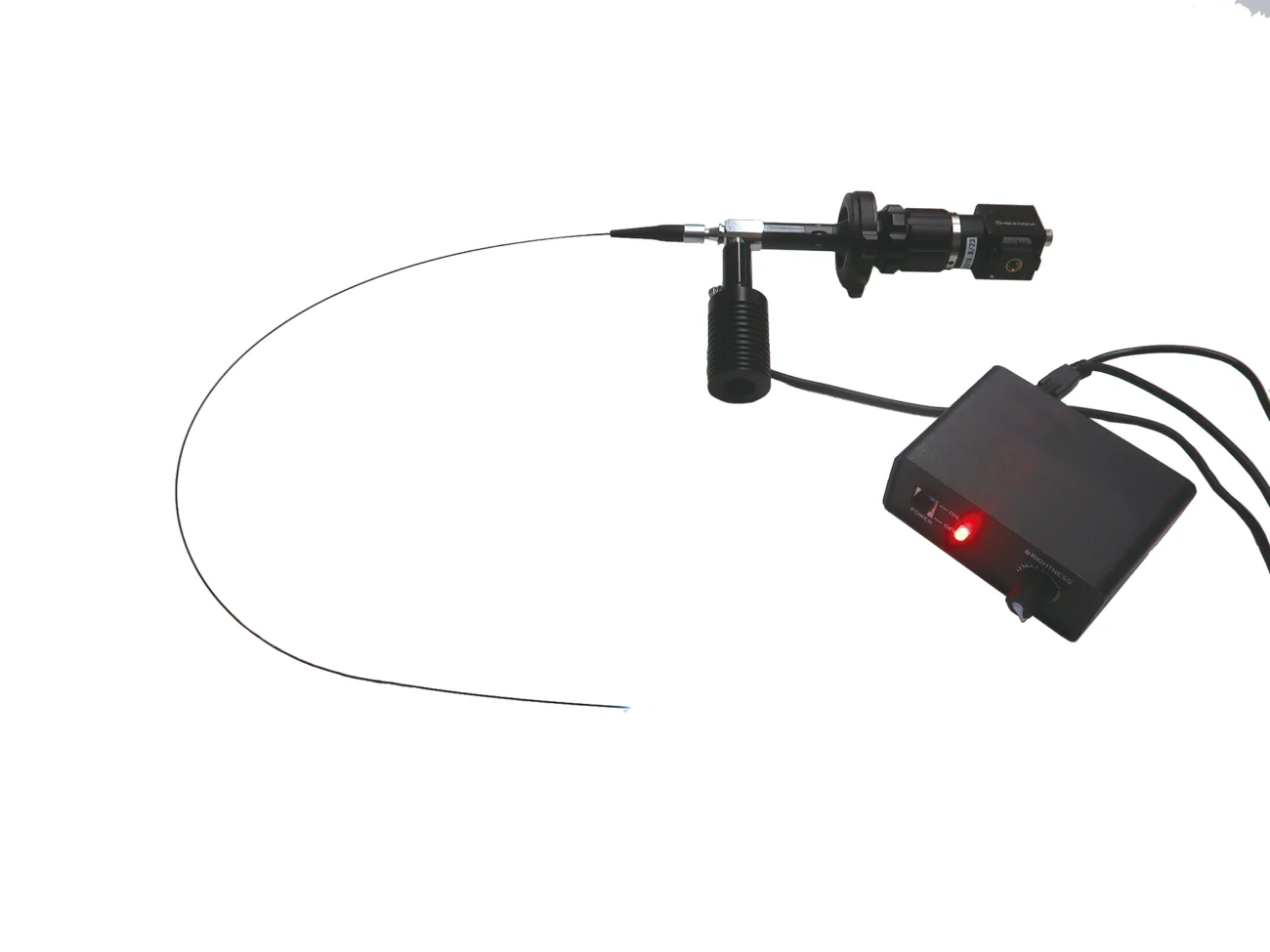

Ultra-thin fiber camera system
¥ 808,000 + tax
- Free demo machine rental
Visualizing an ultra-fine diameter of φ0.8mm with a camera!!
●ファイバースコープの映像化フルセット

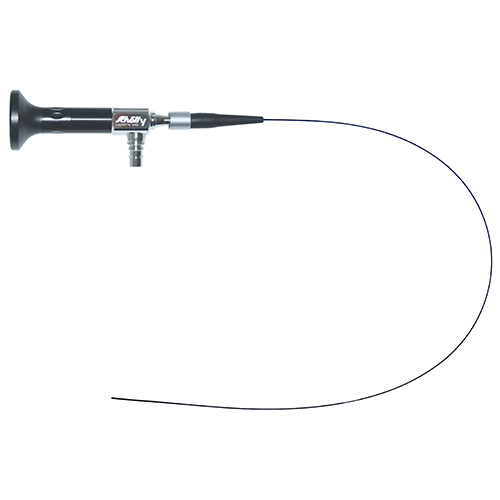

●0.8mmの超細径フレキシブルファイバー
●光ファイバーによる画像伝送
●曲管構造物や複雑形状にも挿入可能
●直接人間の目が届かない狭い部品の内部を非破壊で映像化出来ます。
●PC接続で簡単静止画保存
Product Features

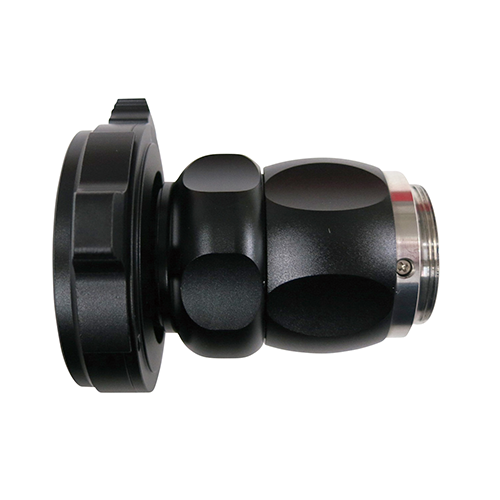

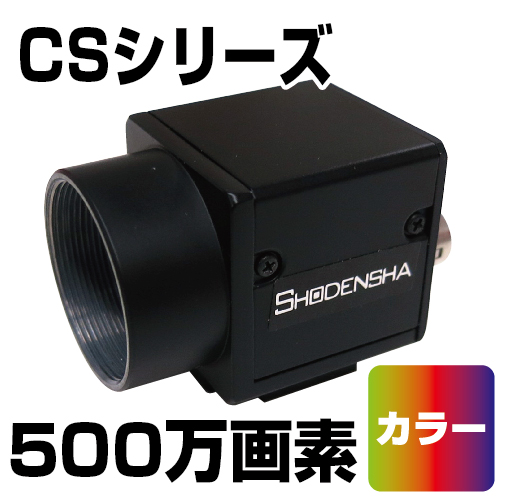

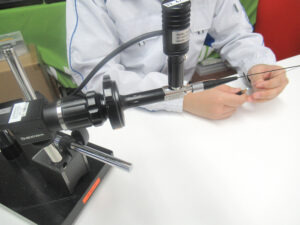

A complete set containing everything needed for fiber-optic imaging!
You can easily project images simply by providing a computer.
On the image quality of the 0.8 mm fiberscope
Due to the very thin 0.8mm diameter, there is a limit to the number of fibers that can be bundled, meaning the resolution is not particularly high.
If a scope thicker than 0.8mm is acceptable, using a thicker model will result in a clearer image, so please feel free to consult us.

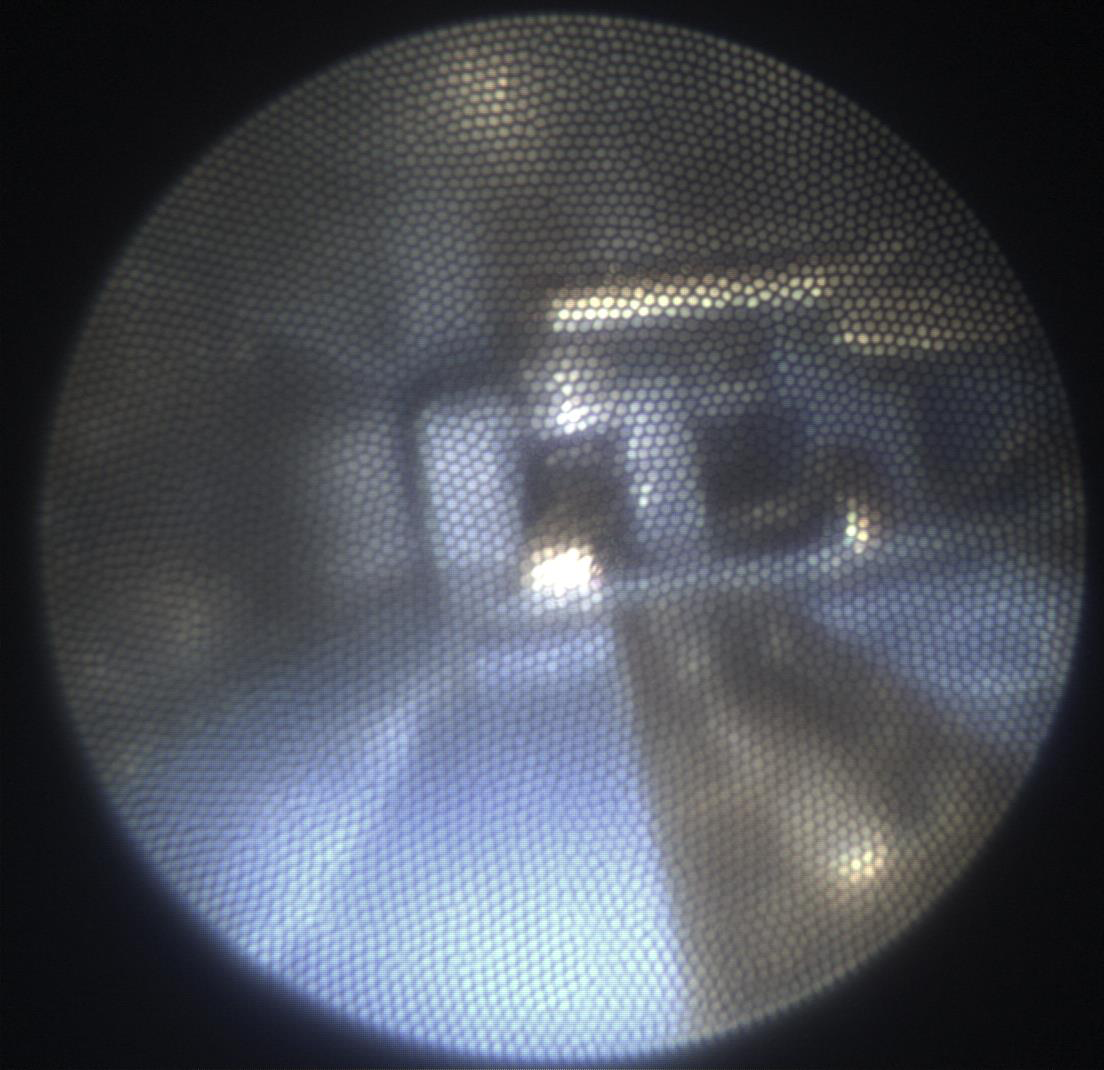

View through a 0.8mm fiberscope

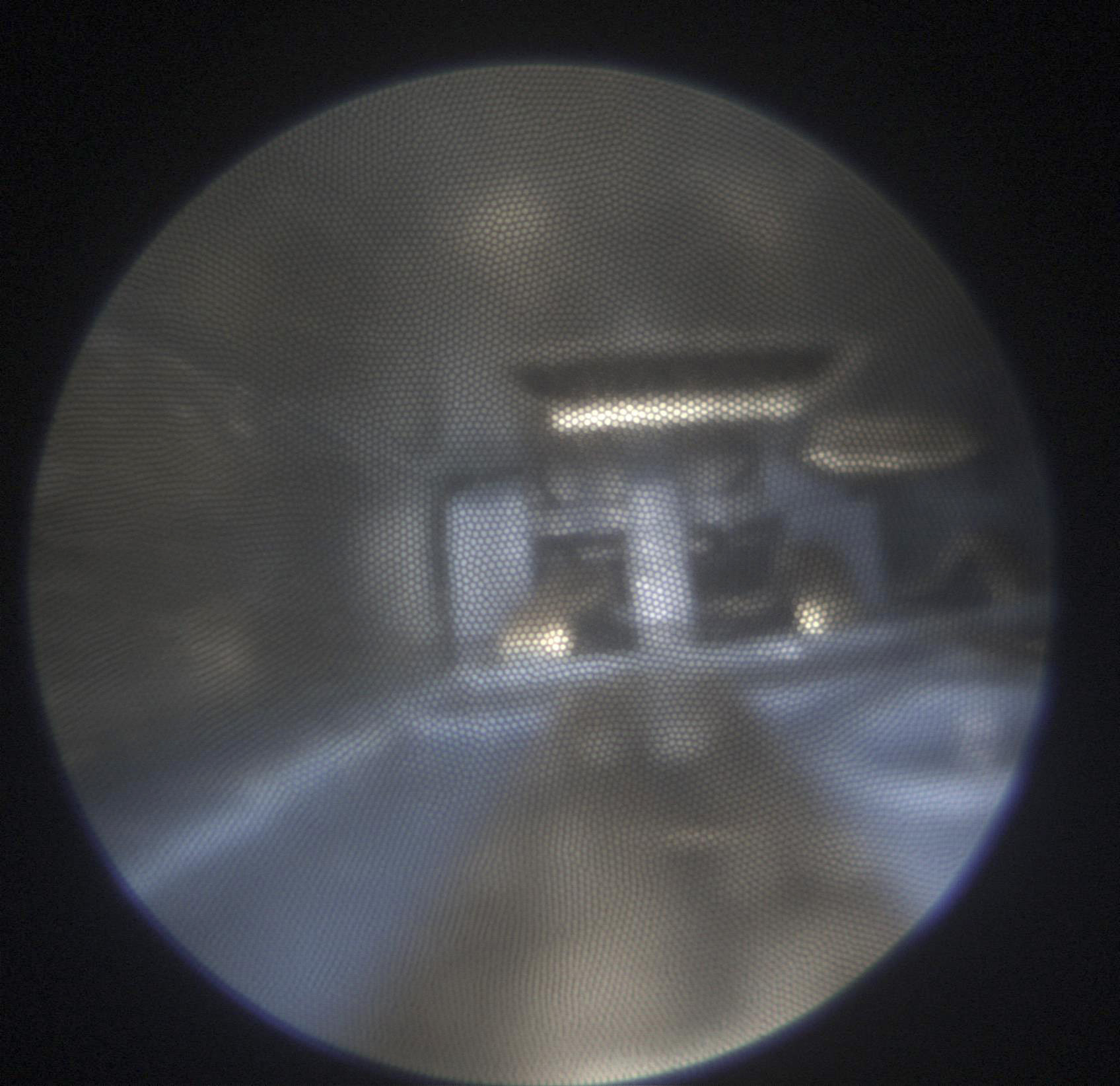

View through a 1.4mm fiberscope
Ultra-slim fiberscopes are frequently used in situations like these.
(Click to view details.)
●Purpose of the examination：
Using a fiberscope to inspect piping for blockages, damage, or corrosion helps minimize equipment downtime and prevent serious accidents.
●Advantage：
A major advantage is that, being a non-destructive inspection method, it allows for real-time observation of internal conditions without the need to dismantle the piping.
●Purpose of the examination：
A fiberscope is used to inspect the interior of the piping for deposits and the extent of corrosion, and to determine the need for cleaning or repairs.
●Advantage：
Internal inspections can be performed while the equipment is in operation, without the need for disassembly.
This significantly improves operational efficiency and aids in the early detection of issues.
●Aircraft and power plants：
Regular maintenance is crucial for aircraft engines and power plant gas turbines.
Inspecting internal blades and combustion chambers for damage or wear using a fiberscope helps prevent failures and improves operational availability.
●Manufacturing machinery：
It helps inspect the internal components of industrial manufacturing line machinery—such as gearboxes and bearings—to detect wear and contamination.
●Internal wall inspection：
You can inspect the condition of piping, electrical cables, insulation, and structural components located within the walls to check for defects or issues.
It is particularly useful for identifying corrosion or deterioration in piping and wiring in older buildings.
●Inspection of concrete structures：
By using a fiberscope, you can inspect the internal condition—such as concrete cracks and the extent of rebar corrosion—without causing any damage.
●Inspection of the engine interior：
You can inspect the interior of an automobile engine, specifically the condition of the combustion chambers, valves, and pistons.
This enables the early detection of engine malfunctions or wear, making it easier to decide whether repairs or replacements are necessary.
●Inspection of the vehicle body’s internal structure：
It is also used to check for structural damage, rust, or broken wires inside the vehicle body.
●Pipeline inspection：
石油・ガスのパイプライン内部の亀裂や腐食、汚れなどを検査し、安全性と効率を確保します。
●Turbine blade inspection：
By inspecting the internal blades and combustion chambers of power plant turbines using a fiberscope, it is possible to detect minute damage or the presence of foreign objects.
Option
Recommended Options
When viewed through a fiberscope, the honeycomb structure appears in the image.
It is possible!!
Using the image correction software HoneycombEraser results in video like the following.
The image correction software HoneycombEraser is equipped with a wide range of features that are convenient for fiber-optic scope operations, such as ROI functionality, one-button still image saving, and automatic brightness adjustment.
Click here for details about HoneycombEraser.
Support
We support our customers
in solving their problems.
We also have a wide range of case studies and technical documents available.
Please feel free to contact us with any questions
or requests you may have about our products.
