Fiberscope
Ultra-thin fiberscope
¥ 577,000 + tax
Ultra-slim φ0.8mm diameter!!
A flexible type that enables detailed inspection.
●0.8mmの超細径フレキシブルファイバースコープ
●光ファイバーによる画像伝送
●曲管構造物や複雑形状にも挿入可能
●直接人間の目が届かない狭い部品の内部を非破壊で目視検査することができます。
※別途、光源装置など用途に応じて周辺機器が必要です。
●0.5ｍｍ、1.4ｍｍタイプもございます、詳細はお問い合わせください。
Product Features
Ultra-slim and flexible—allows for inspection in tight or curved spaces.
With its ultra-slim 0.8 mm diameter and flexible design, this fiberscope enables the inspection of narrow holes and gaps smaller than 1 mm.
It allows for the observation of tight spaces that were previously difficult to access, as well as the interiors of curved pipes.
By combining it with the optional handheld light (LED-BH3), it can also be used for internal inspections of large machinery and structures within the factory.
Examples of Use
- Inspection of the inside of pipes
- Internal inspection of engines and components
- Internal inspection of large machinery, such as boilers
- Internal inspection of structures, such as buildings
Monitoring on a screen is also possible, making sharing and recording easy!

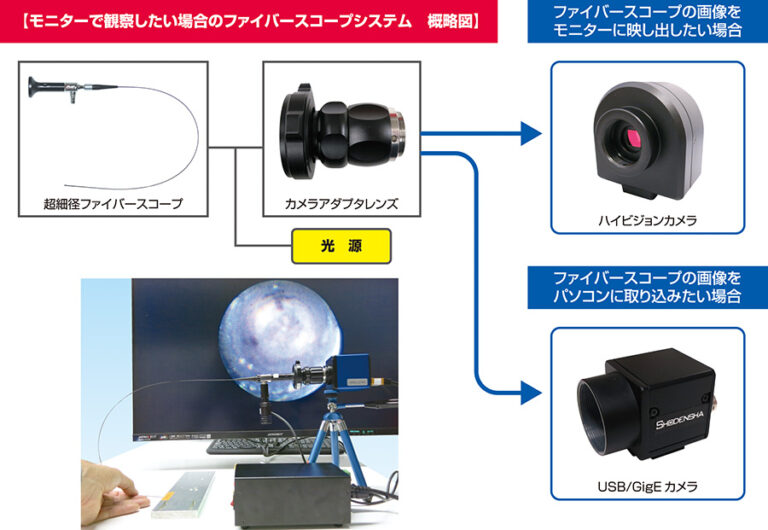

By attaching the optional camera adapter (BA-A1835)to the eyepiece, you can view the image on a monitor instead of looking through the eyepiece directly.
This allows multiple people to view the image simultaneously, and connecting to a PC enables the saving of still images and videos.
On the image quality of the 0.8mm fiberscope
Due to the very thin 0.8mm diameter, there is a limit to the number of fibers that can be bundled, meaning the resolution is not particularly high.
If a scope thicker than 0.8mm is acceptable, using a thicker model will result in a clearer image, so please feel free to consult us.

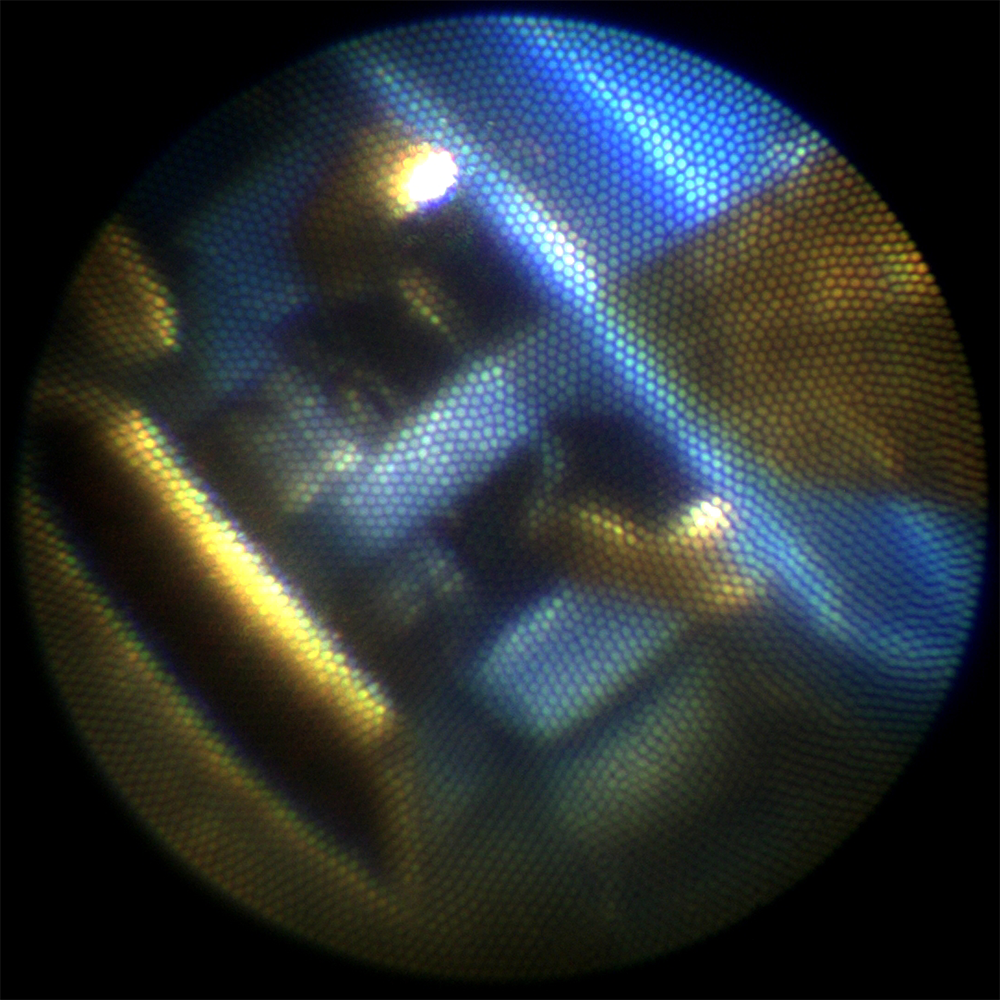

View through a φ0.8mm fiberscope

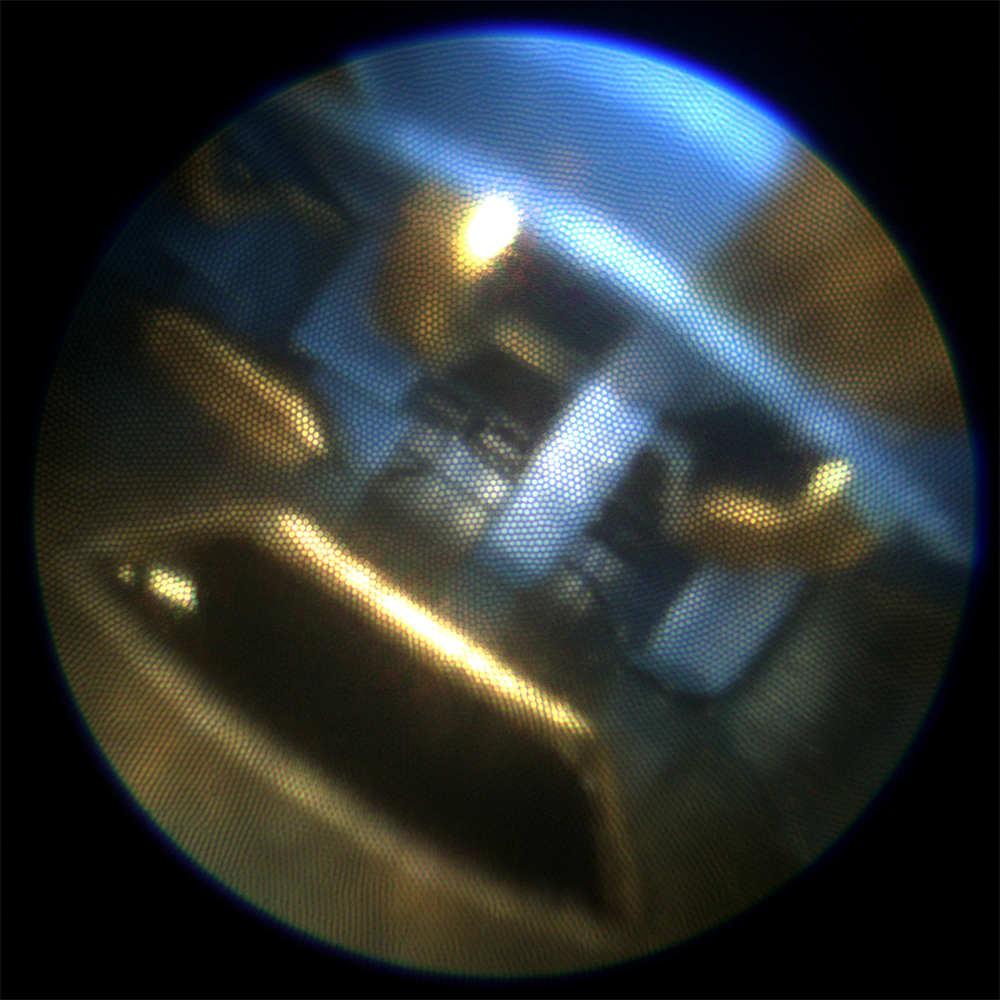

View through a φ1.4mm fiberscope
For those interested in the honeycomb structure shown in the image above:
There is a way to minimize the visibility of the honeycomb pattern.
Please refer to the HoneycombEraserproduct page for details.
Specification

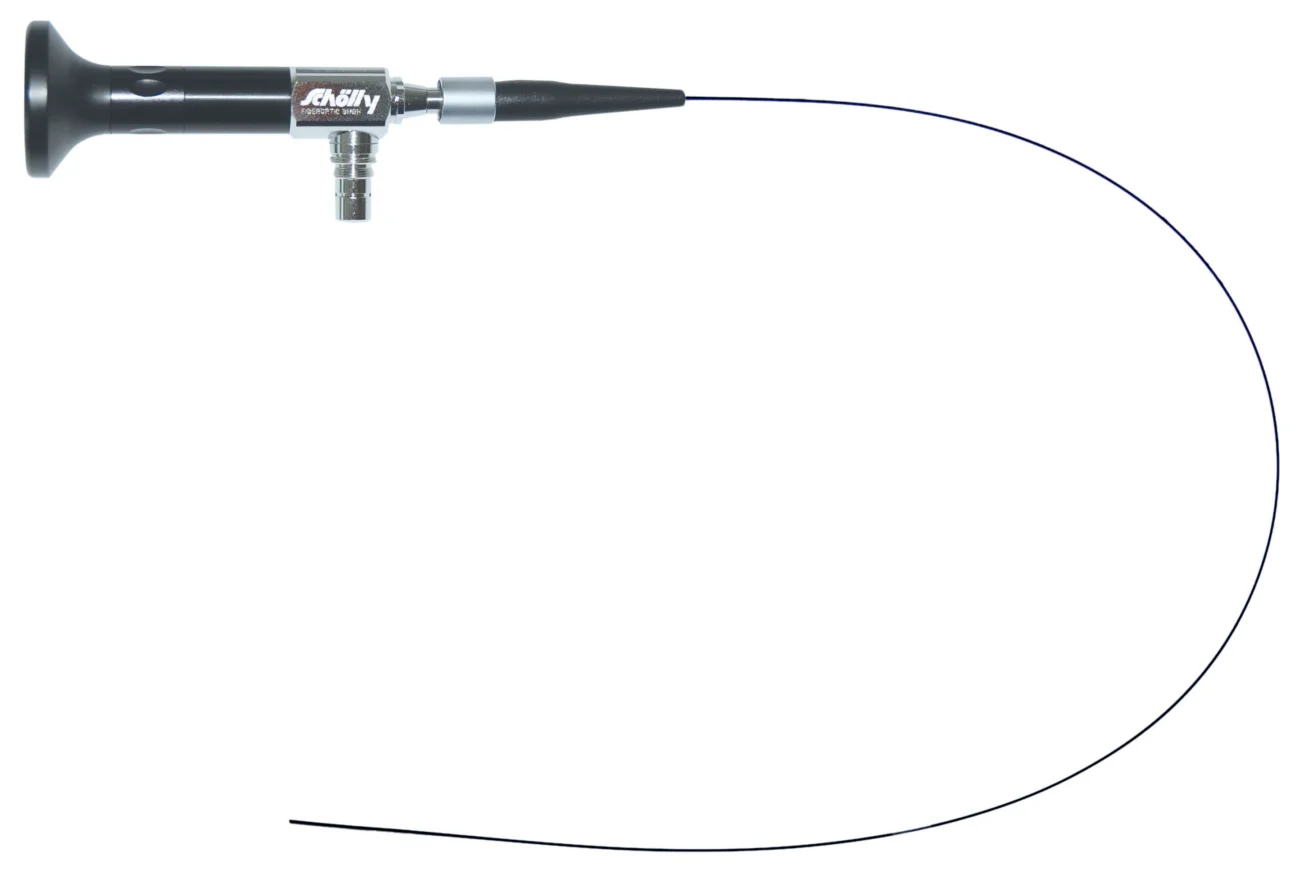

| Model Number | MO.080500.0070 |
|---|---|
| Outer diameter | φ0.8mm |
| Pixel | 6,000 pixels |
| Effective length | 500mm |
| Field-of-view direction | Direct view 0° |
| Viewing angle | 70° |
This fiberscope has a bending radius of 105 mm.
Forcing a bend at an angle sharper than this can cause the fiber to break or the equipment to malfunction.
The bending radius may increase depending on the room temperature or operating environment.
Please use the product with the aim of avoiding malfunctions by essentially refraining from any usage that involves bending it.
