4K Microscope (Direct Monitor Connection Type)
4K Microscope（High magnification）
¥ 577,000 + tax
- Free demo machine rental
- 28x－280x
- 4K
- No PC required
10倍比の4Kズームレンズで500倍まで拡大可能！
●高解像度4Kレンズ搭載
●倍率：55倍～550倍
（※倍率は17インチモニタ換算の計算値）
●最大4倍のデジタルズーム機能搭載
●静止画・動画をマイクロSDカードに記録可能
※別途4Kモニターが必要です。
（13インチなどの小型4Kモニターでは相性により映像出力されない場合もございます。）
Product Features
The rendering capability of high-resolution 4K lenses
Comparison of white and black brightness profiles (at the red circled area on the glass scale)
Conventional lens
High-resolution 4K lens
That’s why
high-definition video is possible!
Magnification / Field of view

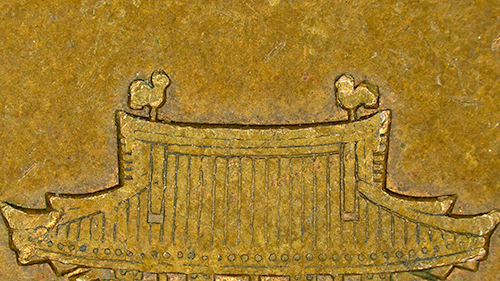

(field of view: 7.5 mm × 4.2 mm)

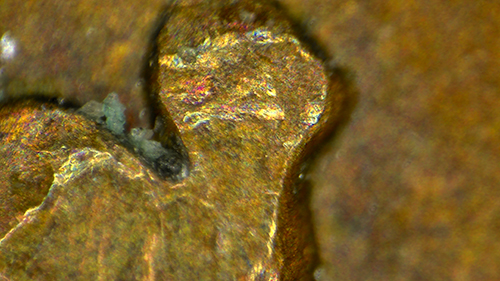

(field of view: 0.75 mm x 0.42 mm)
１．4K microscope equipped with a zoom lens at an amazingly low price!
２．Observe at up to 2000x magnification with up to 4x digital zoom!
Digital zoom allows for up to 4x magnification.
Thanks to the high resolution of the 4K camera, the subject remains clearly visible even when using digital zoom.
No digital zoom
Digital zoom（4×）
Video showing examples of digital zoom usage
３．Exceptional color reproduction
Color palette
４．Cross-line display available!
You can choose between black and white for the cross line.
Click to view an enlarged image.
５．Highly responsive automatic exposure function!
Specification
Specification
| Total Magnification | 50x－500x *The magnification is a calculated value based on a 17-inch monitor. |
|---|---|
| Field of View | 7.0mm×3.9mm （at 50x） |
| 0.7mm×0.39mm （at 500x） | |
| Working Distance | 38mm *It remains virtually constant regardless of the magnification. |
| Image sensor | 1/1.8”CMOS |
| Pixel Size | 2.0μm×2.0μm |
| Resolutions | 3840×2160（4K） |
| Frame rate | 30fps |
Standard equipment
・USB Type C-Type A cable（1.5m）
・USB Power Adapter Plug
・MicroSD card（64GB）
・Remote control
・HDMI cable
Download
Dimension drawing
-
（pdf／77 KB）
-
（zip／706 KB）
-
（pdf／85 KB）
-
（zip／298 KB）
-
（pdf／103 KB）
-
（zip／678 KB）
-
（pdf／127 KB）
-
（zip／2 MB）
