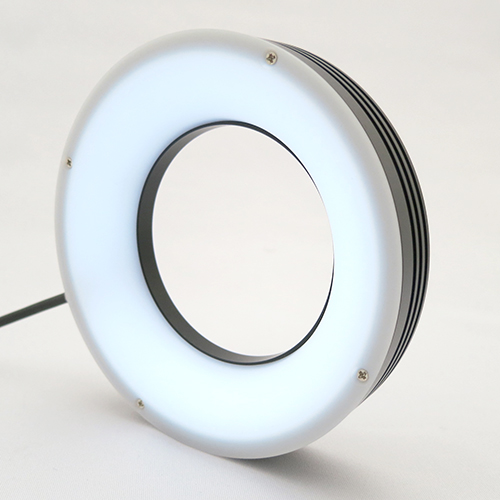

Multi-angle Ring lighting (power supply not included)
Red multi angle ring lighting
¥ 56,000 + tax
作動距離を変えることで従来のリング照明、ローアングル照明の照射範囲をすべてカバー！
●ローアングルからハイアングルまで対応可能な拡散光リング照明
●電源は別売
●取付冶具はオプションです。
Product Features
Usage Example
Character and print inspection, solder joint imaging, PCB pattern recognition, etc.
What is multi-angle ring lighting?
By adjusting the working distance, it covers the entire illumination range of conventional ring lighting and low-angle lighting.

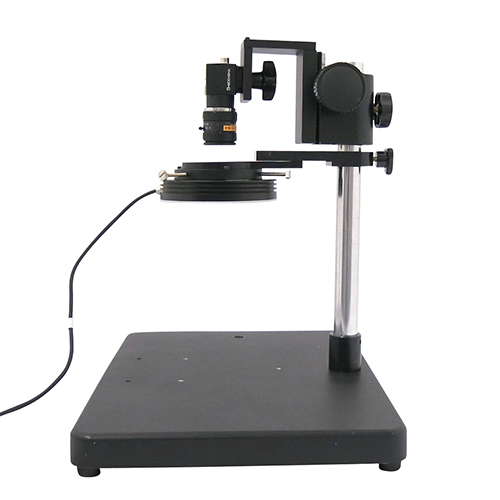

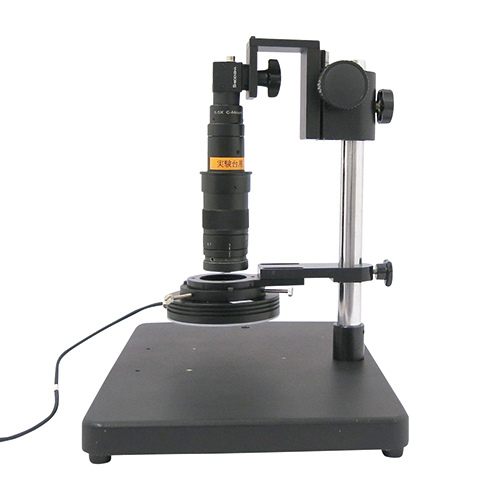

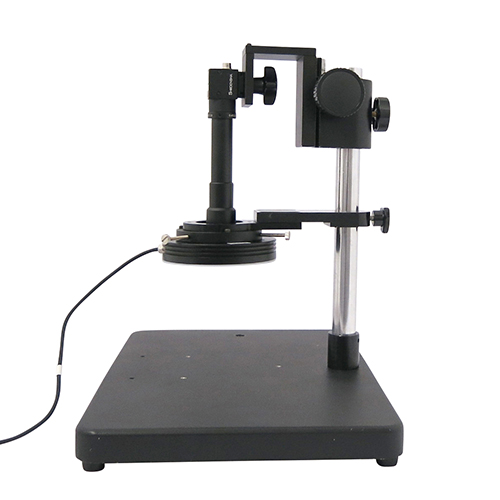

It can be used in combination with various lenses.

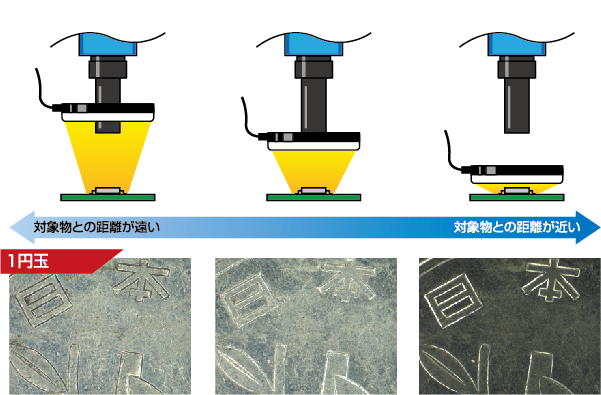

Observation while varying the distance between the multi-angle lighting and the object
Specification
| Size | φ75×22mm |
|---|---|
| Maximum current consumption | 104mA |
| Input voltage | 24V |
| Outer diameter（mm） | 75 |
| Inner diameter（mm） | 42 |
| Cable length | 1m |
Download
Dimension drawing
-
（pdf／400 KB）
-
（zip／174 KB）
Option
-
マニュアル1CH電源
LDY-24V-CH1P
¥ 30,000 + tax
- Free demo machine rental
-
外部制御／ストロボ機能付コントローラー（1.0A）
STB-VL2CH-N
¥ 46,000 + tax
- Free demo machine rental
-
PC制御付き電源
LV-E2404
Make to Order
- Free demo machine rental
Extension cables are also available (optional).
We offer extension cables to extend the connection between the lighting and the power source.
VL-EXT-2m 2m （2,300円（税抜））
VL-EXT-3m 3m （3,000円（税抜））
VL-EXT-5m 5m （4,000円（税抜））
VL-EXT-10m 10m （7,500円（税抜））
