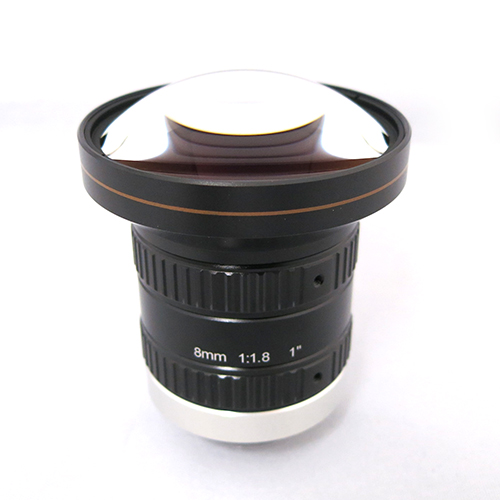

12 Megapixel Compatible Fixed Focal Length Lens
8mm 固定焦点レンズ（1.1インチ・12MP対応）
¥ 78,000 + tax
- Free demo machine rental
1.1インチ 1200万画素対応！！
高解像度固定焦点レンズ
●1.1インチ対応
●1200万画素対応
仕様
| 型番 | SM0818M-12MP |
|---|---|
| 焦点距離 | 8mm |
| 絞り範囲 | F1.8－C（ロックビス付） |
| マウント | Cマウント |
| 対応カメラ | 1.1インチ以下 |
| 水平・垂直画角 | 77.16°・61.3° |
| ディストーション（1″時） | -4.12% |
| 外形寸法 | φ56.8×54.9mm |
| 重量 | 236g |
| 最至近撮影距離 | 0.3m |
| フィルタねじ | － |
| 使用温度範囲 | -10－＋50℃ |
ダウンロード
Dimension drawing
-
（pdf／75 KB）
-
（zip／1 MB）
オプション
This is an optional accessory that can be attached between the lens and the camera to increase the shooting magnification without changing the focal length.
While the magnification increases, resolution and contrast are reduced.
*The extender cannot be attached to lenses with a large protruding rear element.
This is an optional accessory that attaches between the lens and the camera to shorten the minimum focusing distance and increase the magnification ratio.
