LED Lighting Power Supply with 7-Segment Display (with External Control Terminals)
Contact Us
Capable of 7-segment display and reproducible illuminance.
●７セグ表示器付 LED照明用電源（外部制御端子付）を製作致しました。
● ケーブルはロボットケーブル仕様（5m、8m、10m）
Product Features

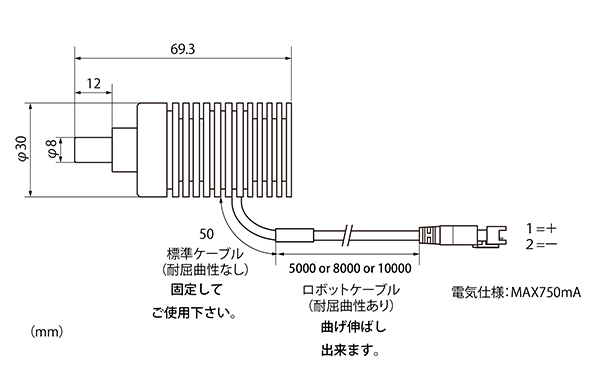

The cable is a robot cable with flex resistance.
Specification
●Usage environment
Ambient temperature: 0–40°C; ambient humidity: 0–85%; no condensation.
●Electrical specifications
Input voltage: AC 100–240 V; Output current: Max. 750 mA
●Function
Power Switch: Turns the power on and off.
MANU/REMO Selector Switch: Selects between manual and remote dimming control modes.
When Manual (MANU) mode is selected, the LED illuminator’s brightness is adjusted using the dimming control knob on the front panel.
When Remote (REMO) mode is selected, the LED illuminator’s brightness is adjusted via an external 8-bit digital input through the Control I/O connector on the rear panel (see the following section).

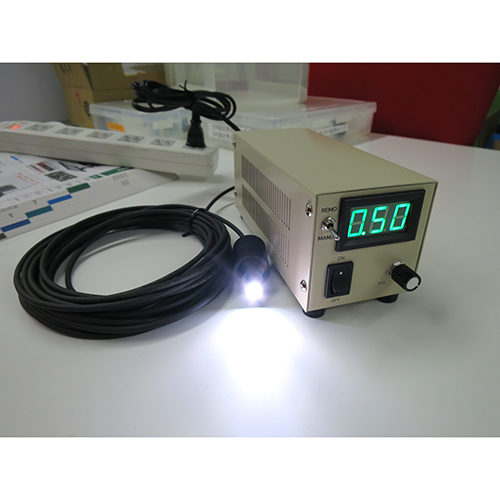

The current flowing to the LED illuminator is displayed on the front panel, with a minimum display resolution of 0.01 A.
●Output connector pin assignment

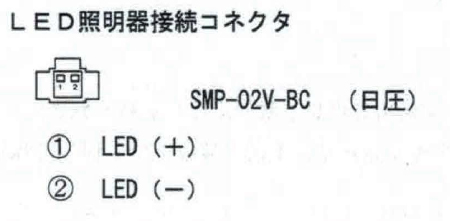

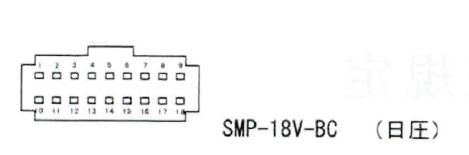

Control I/O Connector Pin Assignments and Connection Method:

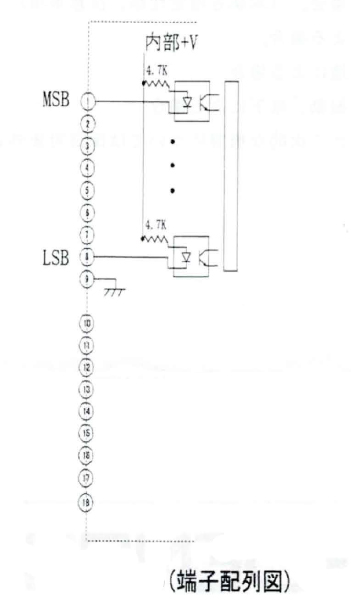

Terminals ① through ⑨ are input terminals for external digital dimming (8-bit) when the remote mode (REMO) is selected.
Terminals ⓾ through ⑱ are not connected.

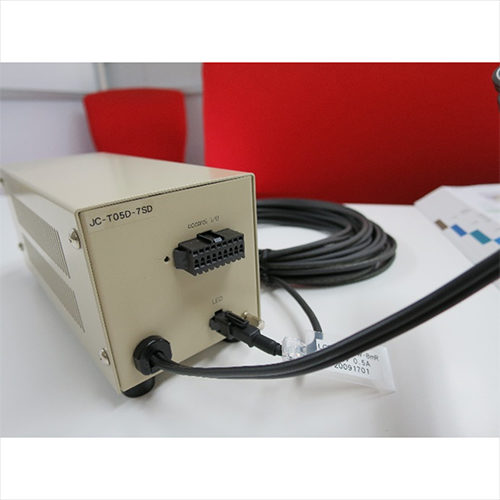

●Please ensure the grounding terminal located at the bottom right of the rear panel is securely connected to earth ground for safety and noise prevention.
