Small-diameter in pipe camera

¥ 160,000 + tax

Free demo machine rental

●穴の内側面の検査に最適
●被写界深度が深い魚眼レンズ
●本体長30cm
（10cm-100cmまで長さの変更対応可能）
※本体の長さによって価格が変わります
●φ13の細径ボディ

※デモ機は14cmタイプも選択できます。

※防水機能はありません。

Inquire about products

Product Features

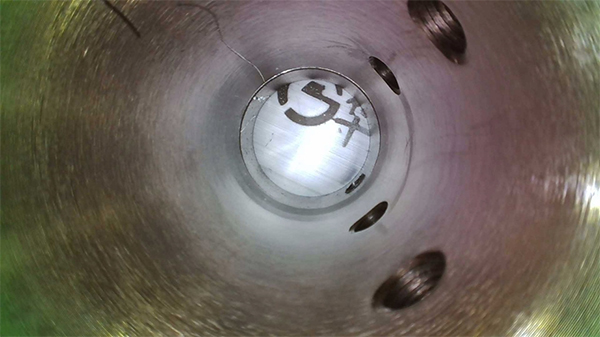

Examples of wall surface observation

Observation of the bottom of a hole with a diameter of 30 mm and a depth of 65 mm.

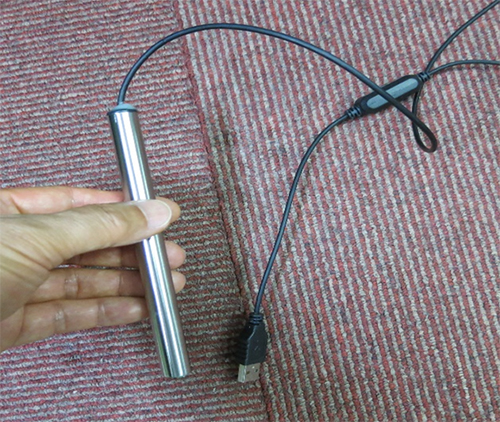

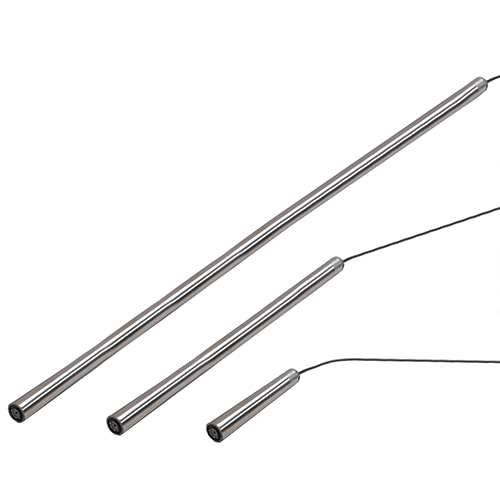

■USB Pipe Inspection Camera (13mm diameter, with illumination, wide-angle lens)

You can freely choose the length from 10 cm to 100 cm, in 10 cm increments.
The item shown below is the 10 cm version.

■Image captured by an in-pipe USB camera

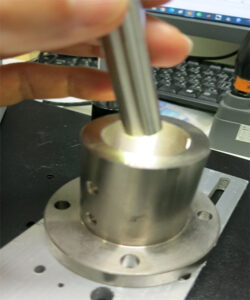

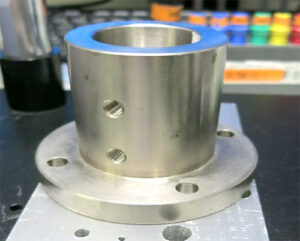

Using an in-pipe camera, inspect an object with a diameter of 20 mm and a depth of 60 mm that features M4 cross-holes at depths of 15 mm, 30 mm, and 55 mm from the top; insert the camera gradually and capture images at these three locations.

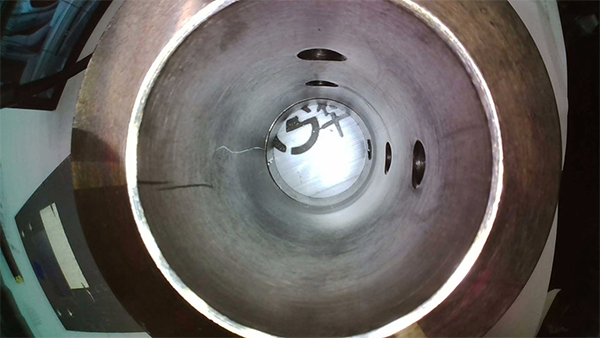

Observe from outside the hole.

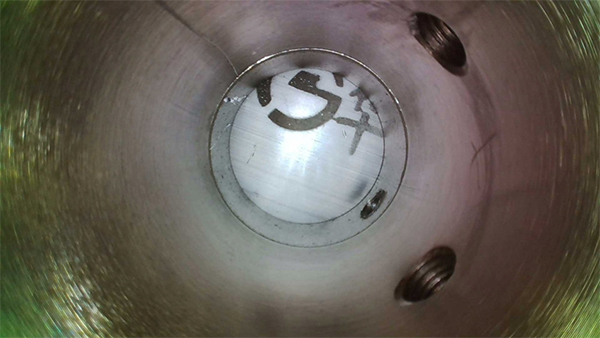

Observe the hole near the 15 mm mark.

Observe the hole near the 30 mm mark.

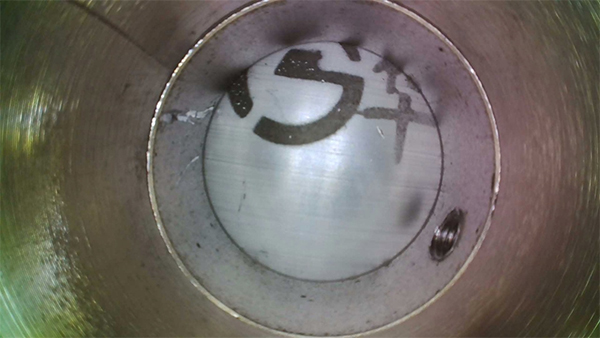

Observe the hole near the 55 mm mark.

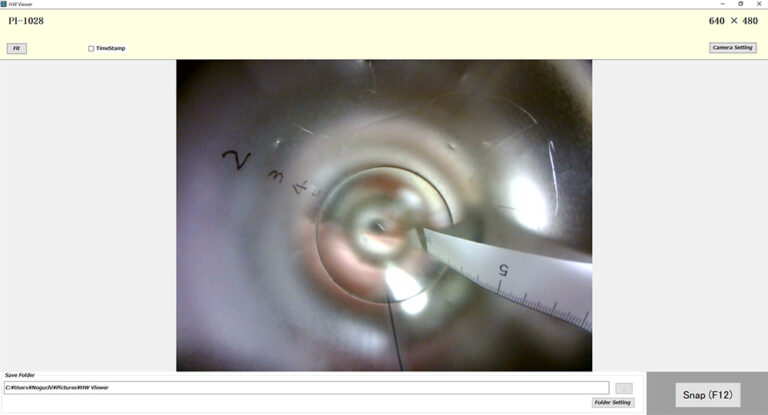

Standard viewer software included

Includes a viewer application that allows you to control the resolution and brightness of the inspection camera.
It also supports saving still images.

Specification

Model Number	PI-158-30 (The final digit varies depending on the body length.)
Image sensor	1/6-inch 2.0 Megapixel CMOS
Pixel size	1.4µm×1.4µm
Maximum resolution	1920×1080
Frame rate	15-30fps
Dynamic range	68dB
S/N ratio	36dB
Shutter	Rolling shutter
PC Connection	USB2.0
Image format	MJPG・YUV
Supported OS	Windows 10、11　Linux
Size	φ13mm×300mm (Adjustable from 100 mm to 1,000 mm)
