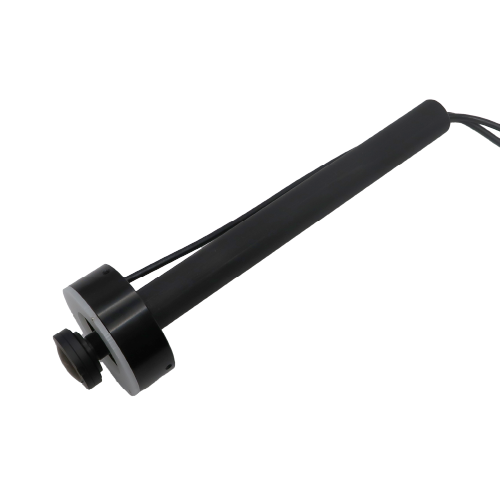

Large-diameter in pipe camera

¥ 195,000 + tax

Free demo machine rental

穴内部の壁面をしっかり観察！
内径55㎜以上の穴観察はお任せください！

●穴の内側面の検査に最適
●被写界深度が深い魚眼レンズ
●本体長30cm
（30cm以上も可能です、お問い合わせ下さい）
※本体の長さによって価格が変わります。

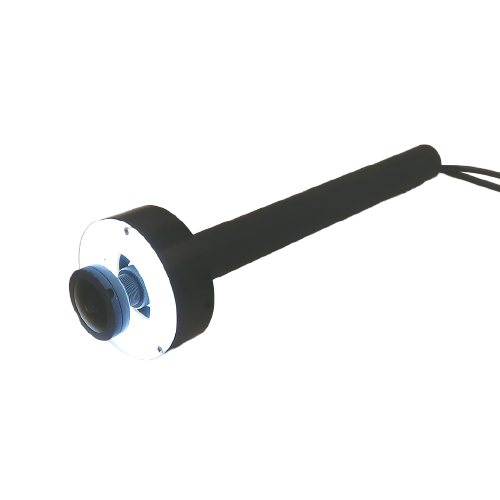

●本体先端外径はφ27、照明の外径がφ54

Inquire about products

Product Features　　　　　　　

Features of Large-Diameter in Pipe Inspection Cameras

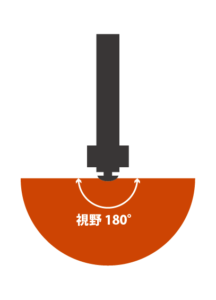

By utilizing a lens with a 180° field of view, it is specialized for inspecting the side walls of holes.

that’s why

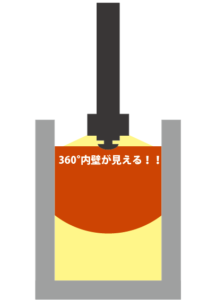

Please watch the video to see an example of 360° wall surface observation.

Regarding observable hole sizes

The standard length for the pipe inspection camera is 20 cm, but units can be manufactured in lengths ranging from 20 cm to 100 cm, in 20 cm increments.
Please contact us for details.

■If the hole inner diameter is smaller than 54 mm

Removing the illumination unit reduces the outer diameter of the main body to φ20 mm.
By directing light into the hole from an external source, it is possible to inspect holes narrower than 54 mm.

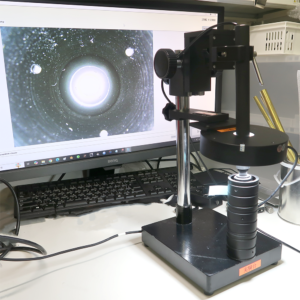

Case of observation

By using external lighting to direct light into the hole, it is possible to observe objects with a hole diameter of φ37.
The lighting used can be found here.

Standard viewer software included

Includes a viewer application that allows you to control the resolution and brightness of the inspection camera.
It also supports saving still images.

Specification

Model Number	PI-1028-30 (The final digit varies depending on the body length.)
Image sensor	1/4 inch CMOS 5.0 megapixel sensor
Pixel size	1.4µm×1.4µm
Maximum resolution	2592×1944
Frame rate	MJPG：10fps（2592×1944） YUV：2fps（2592×1944）
Dynamic range	63dB
Viewing angle	180°
Shutter	Rolling shutter
PC Connection	USB2.0
Image format	MJPG・YUV
Supported OS	Windows 10、11　Linux
Size	Camera unit: φ27 mm × 300 mm (Adjustable from 300 mm to 1000 mm) Lighting outer diameter: φ54 mm
