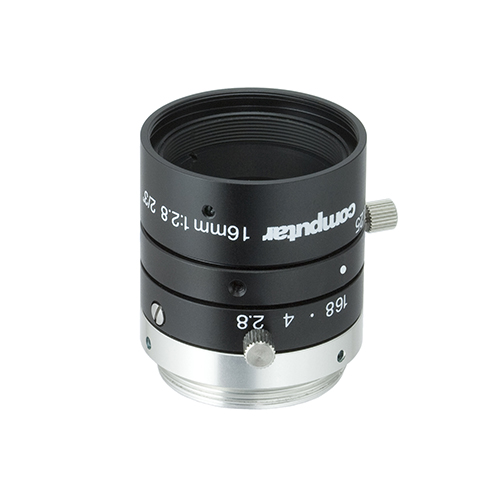

5 and 6-Megapixel Compatible Fixed Focal Length Lens
16mm 固定焦点レンズ（600万画素対応）
¥ 45,000 + tax
- Free demo machine rental
カメラの性能をフルに活かせる
高解像度600万画素対応レンズ！
仕様
| 型番 | M1628-MPW3 |
|---|---|
| 焦点距離 | 16mm |
| 絞り範囲 | F2.8－F16.0（ロックビス付） |
| マウント | Cマウント |
| 対応カメラ | 2/3インチ以下 |
| 水平・垂直画角 | 30.7度・23.3度 |
| ディストーション（2/3″時） | 0.47% |
| 外形寸法 | φ29×29mm |
| 重量 | 37g |
| 最至近撮影距離 | 0.25m |
| フィルタねじ | M27x0.5 |
| 使用温度範囲 | -10－＋50℃ |
ダウンロード
Dimension drawing
-
（pdf／53 KB）
-
（zip／122 KB）
オプション
This is an optional accessory that can be attached between the lens and the camera to increase the shooting magnification without changing the focal length.
While the magnification increases, resolution and contrast are reduced.
*The extender cannot be attached to lenses with a large protruding rear element.
This is an optional accessory that attaches between the lens and the camera to shorten the minimum focusing distance and increase the magnification ratio.
