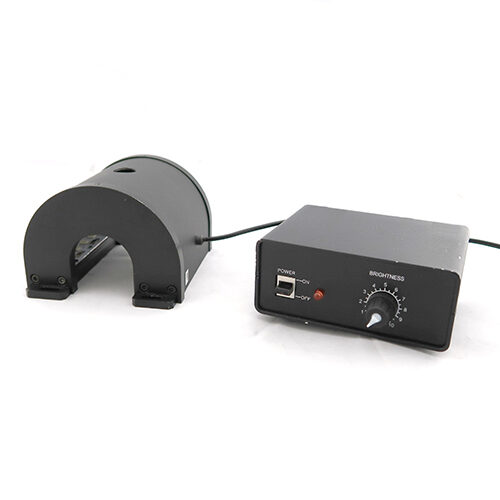

Arch-shaped Lighting (with power supply)
Arched lighting
¥ 226,000 + tax
円柱形の対象物を均一に照らします。
●電線や円柱形の金属などハレーションを起こしやすい対象物の表面傷欠陥検査に最適
●ドーム内下部の内側向き180°からの出射光をドーム内壁で反転させることにより、ワーク面に均一な照明を与えます。
●電源標準付属
Product Features
Usage Example
Inspection for surface scratches and defects on objects prone to halation, etc.

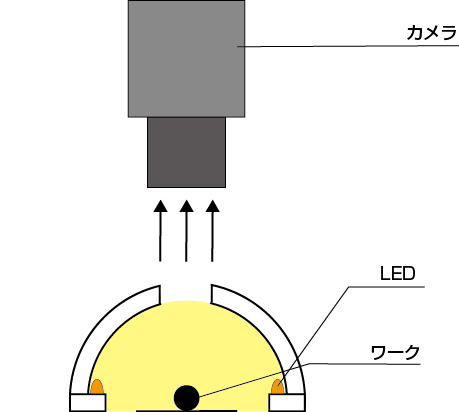

Configuration Example
Comparison image

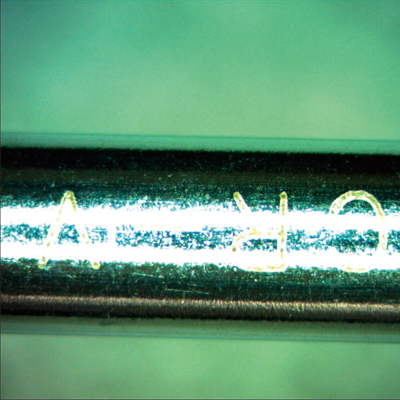

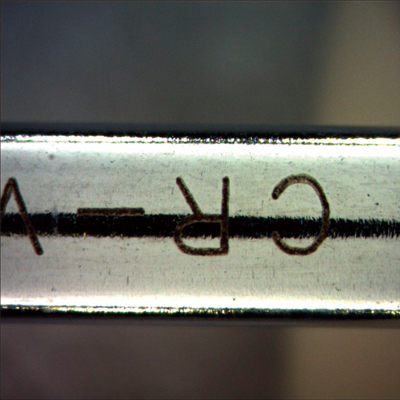

●Observe the cylindrical metal object.

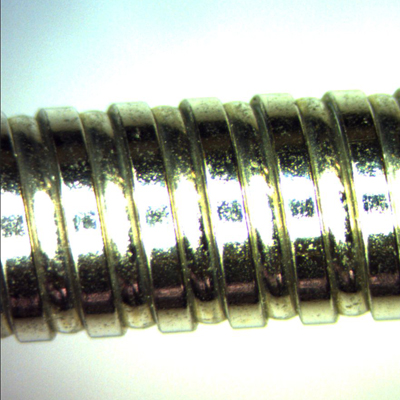

●Observe the cylindrical bellows.

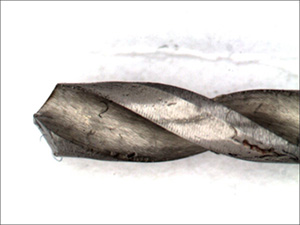

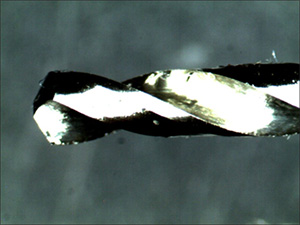

●Observe the drill bit.
Specification
| Size | 150mmx163mm |
|---|---|
| Hole size | φ25 |
| Maximum current consumption | 166mA |
| Input voltage | 24V |
| Cable length | 1m |
Option
-
マニュアル1CH電源
LDY-24V-CH1P
¥ 30,000 + tax
- Free demo machine rental
-
マニュアル2CH電源
LDY-24V-CH2
Make to Order
- Free demo machine rental
-
外部制御／ストロボ機能付コントローラー（1.0A）
STB-VL2CH-N
¥ 46,000 + tax
- Free demo machine rental
-
PC制御付き電源
LV-E2404
Make to Order
- Free demo machine rental
Extension cables are also available (optional).
We offer extension cables to extend the connection between the lighting and the power source.
VL-EXT-2m 2m （2,300円（税抜））
VL-EXT-3m 3m （3,000円（税抜））
VL-EXT-5m 5m （4,000円（税抜））
VL-EXT-10m 10m （7,500円（税抜））
