    マイクロスコープ

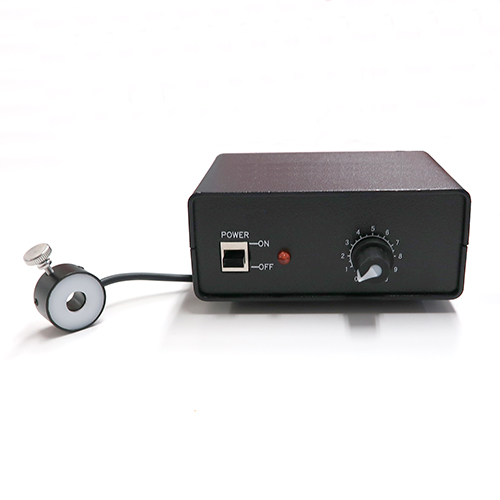

    小型LED照明 LED-2508W-CH1

    ¥ 44,000 + tax

    • デモ機無料貸出

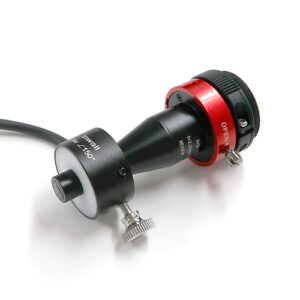

    ●ホールインスペクションレンズ PHL178に対応
    ●Φ8~50mmの細い穴を観察するのに最適な照明

    製品の特長

    LED-2508-CH1_compact1
    LED-2508-CH1_compact2

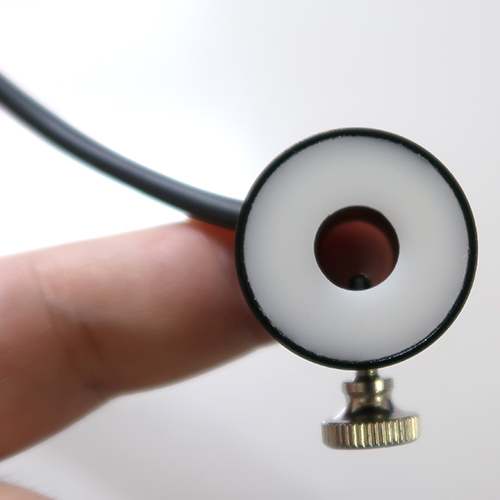

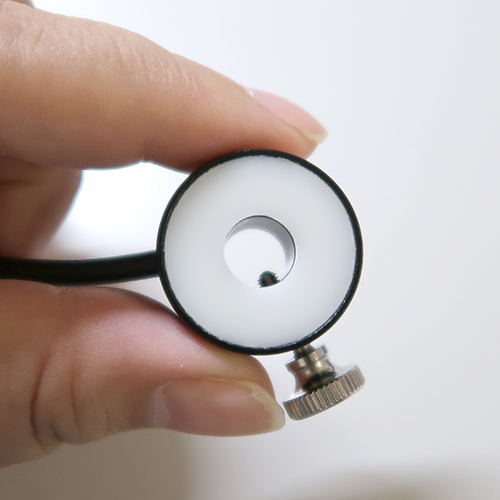

    指先に載る程度の超小型LED!

    使用例

    仕様

    照明部

    照度50mm:最大照度6000lx
    100mm:最大照度2000lx
    照射角度150°
    取付径φ8.6mm(1点ネジ止め)
    外径寸法φ25mm×13.5mm



    電源部

    定格入力電圧100-240V
    チャンネル数1
    出力電圧24V
    調光方式PWM調光方式
    容量24W
    サイズ80×110×52.5mm(突起物を除く)

    ダウンロード

    Dimension drawing
