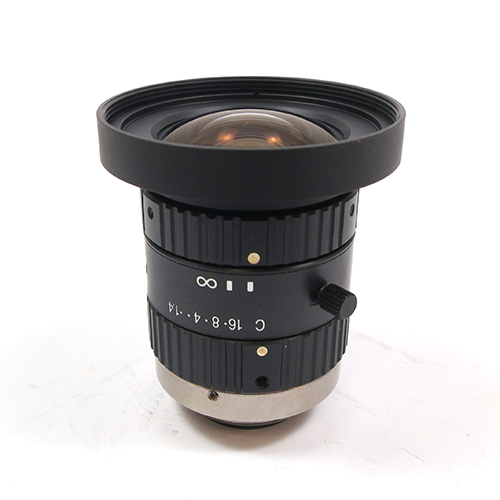

Megapixel compatible fixed focal length lens
5mm 低歪固定焦点レンズ （低歪タイプ）
¥ 35,000 + tax
- Free demo machine rental
製品の特長
参考例
●1/2インチUSBカメラ使用

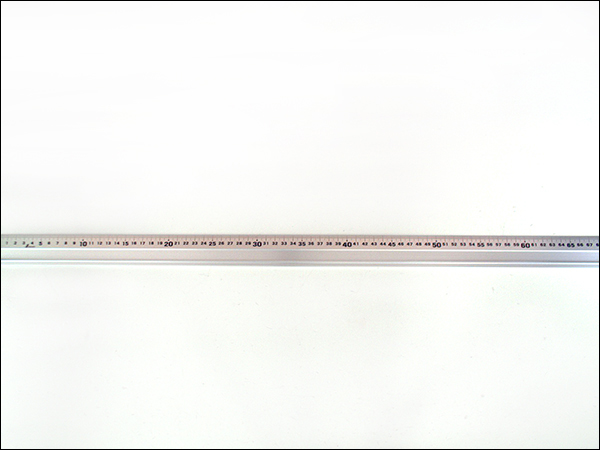

●作動距離0.5mで撮影 視野範囲：640.0mm×480.0mm

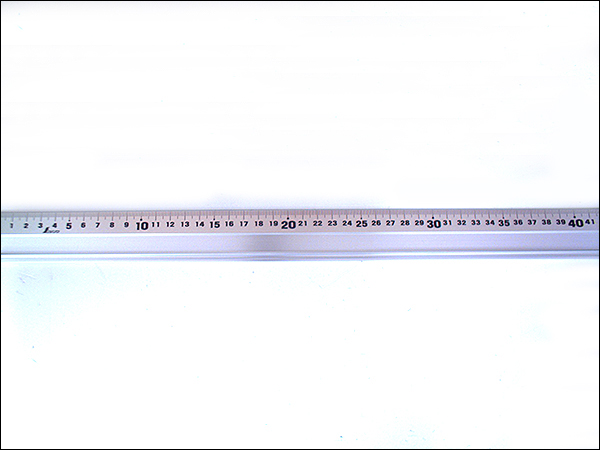

●作動距離0.3mで撮影 視野範囲：384.0mm×288.0mm
仕様
| 型番 | H0514-MP2 |
|---|---|
| 焦点距離 | 5mm |
| 絞り範囲 | F1.4－F16C（ロックビス付） |
| マウント | Cマウント |
| 対応カメラ | 1/2インチ以下 |
| 水平・垂直画角 | 65.5°・51.4° |
| ディストーション（1/2″時） | -0.48% |
| 外形寸法 | φ44.5×45.8mm |
| 重量 | 107g |
| 最至近撮影距離 | 0.1m |
| フィルタねじ | M43×0.75 |
| 使用温度範囲 | -20－＋50℃ |
ダウンロード
Dimension drawing
-
（pdf／417 KB）
-
（zip／322 KB）
オプション
This is an optional accessory that can be attached between the lens and the camera to increase the shooting magnification without changing the focal length.
While the magnification increases, resolution and contrast are reduced.
*The extender cannot be attached to lenses with a large protruding rear element.
This is an optional accessory that attaches between the lens and the camera to shorten the minimum focusing distance and increase the magnification ratio.
