Camera shooting system

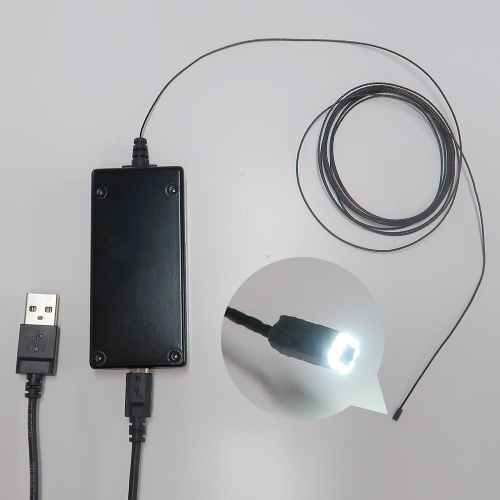

Ultra compact endoscopic UVC camera
¥ 232,000 + tax
- Free demo machine rental
超小型ヘッド16万画素を凝縮！
これまで入れなかった領域の「視える」を実現します。
●1.8㎜角（対角2.6㎜）の超小型ヘッド
●超小型ヘッドながら16万画素
●光が均等に当たるLEDの配置設計
●ヘッドケーブル長は2.0m
●PCにUSBケーブルでの簡単接続
Product Features
160,000-pixel resolution—even with an ultra-compact camera head (1.8 mm square)!

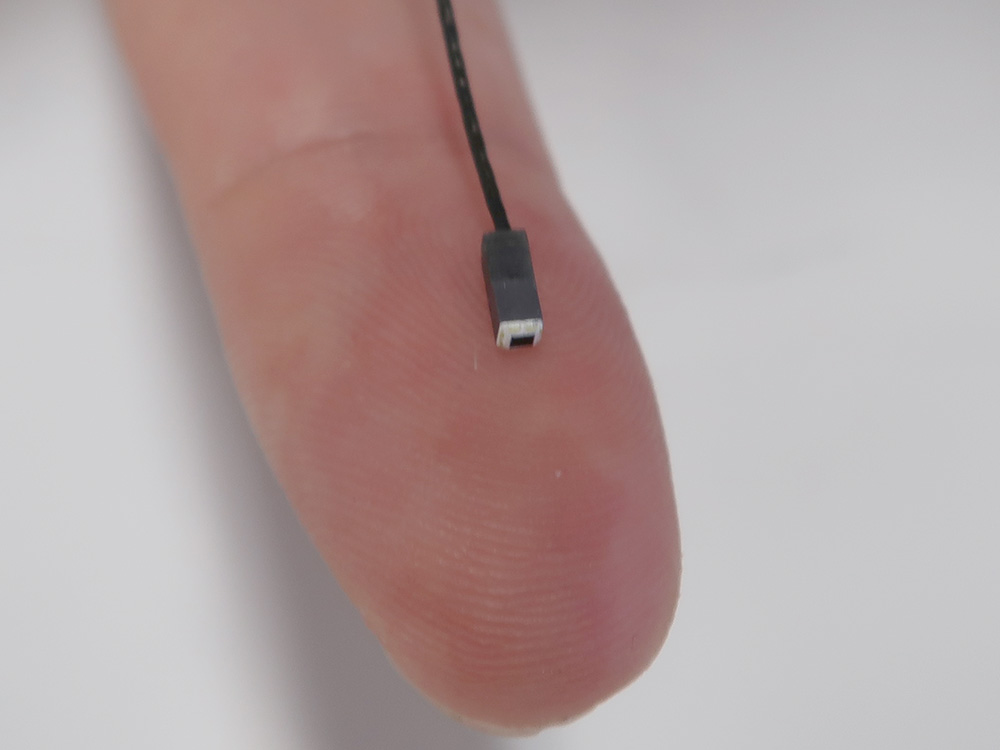

Ultra-compact 1.8 mm square camera head
Clear imaging even at 160,000 pixels (image of a USB port)
Extensive image processing capabilities
It offers a wide range of features for adjusting image visibility,
allowing you to fine-tune the display to your preferred look.
- Black Level
- Contrast
- Gamma
- Exposure Time
- Analog and digital gain
- One Push AWB
- Color Correction
- Noise Filter
- Sharpness
- Image Flip

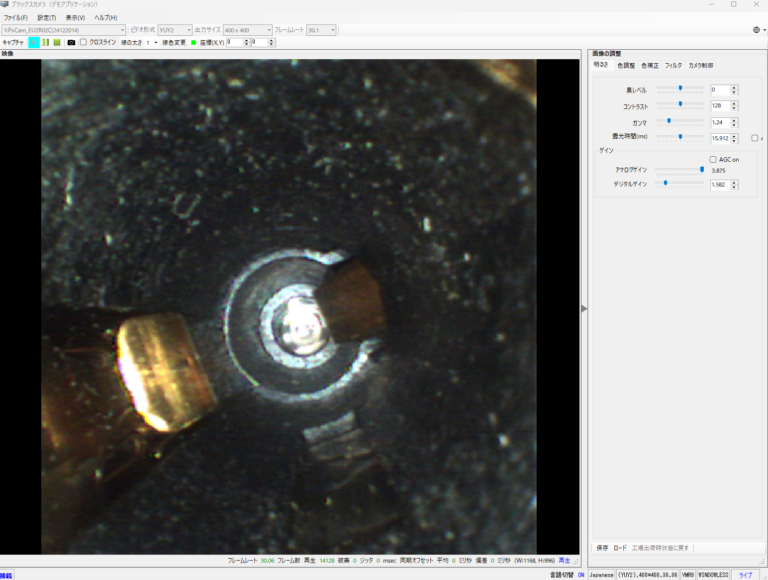

Includes an application that allows for saving still images and settings.
As this device is a UVC camera, it is compatible with a wide range of applications.
However, depending on the application, it may not be possible to access or configure all of the available adjustment settings.
By using the included application, you can save settings to the camera and also save still images.
Specification
| Camera head size | 1.8mm×1.8mm×6.25mm |
|---|---|
| Cable length | 2.0m |
| Pixel | 160,000 pixels 400×400（30fps） |
| Sensor | 1/18 inch color OV6946 |
| Pixel size | 1.75µm |
| Angle of view (diagonal) | 120° |
| F-number | 5.0 |
| Focal length | 0.418mm |
| Distortion | ＜11% |
