Motorized focus lens

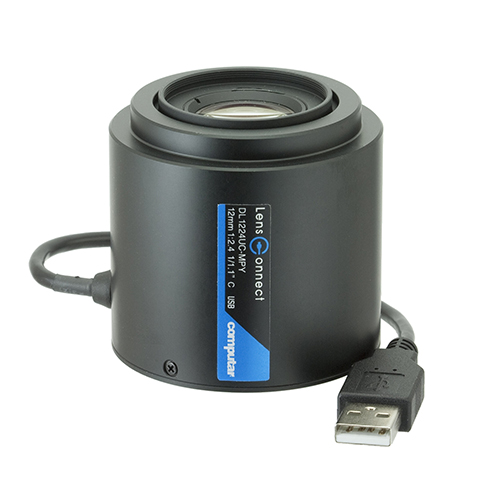

12mm 固定焦点電動フォーカスレンズ（12MP対応）
¥ 150,000 + tax
- Free demo machine rental
●レンズ本体にモーター、制御基板・USB通信機能を搭載
●USBケーブル1本でPC（Windows/Linux）に接続してフォーカス調整・絞り調整がコントロール可能
●汎用的なCマウントカメラで使用可能（他社Cマウントカメラも可）
●12MP対応の高解像度レンズ
●1/1.1インチ型の大型素子に対応
●レンズ制御ソフトウェア・SDKが標準付属
製品の特長
Motorized lens adjustment
With standard fixed-focus lenses, the focus and aperture dials must be adjusted manually.
Motorized focus lenses are lenses that can be connected to a PC via a USB cable, allowing for remote adjustment of focus and aperture.
The use of a stepping motor enables precise operation, achieving rapid lens adjustment with high accuracy and repeatability.
Easy to implement
It features a built-in driver circuit board and comes with standard control software, making implementation easy.
It can be used without requiring advanced knowledge of electronics or complex optics.
Sample program source code is also included, allowing for integration into your GUI.
仕様
| 型番 | DL1224UC-MPY |
|---|---|
| 焦点距離 | 12mm |
| 絞り範囲 | F2.4-F16C |
| マウント | Cマウント |
| 対応カメラ | 1/1.1インチ以下 |
| 画角（1/1.1″） | 50.5°・38.1° |
| 外径寸法 | φ59.5×57.9mm |
| 重量 | 163g |
| 最至近撮影距離 | 0.1m |
| フィルタねじ | M35.5×0.5 |
| USBケーブル長 | 300mm |
ダウンロード
Dimension drawing
-
（pdf／103 KB）
-
（zip／101 KB）
よくある質問
オプション
Autofocus is no longer needed!
Make motorized focus lenses even more convenient!
A convenient controller that requires no programming.
- An original lens control controller developed by Shodensha.
- No PC required
- No programming required
- Save 10 focus and brightness settings to the controller.
- Controlled arbitrarily by external signals
Accurately and quickly adjusts the focus and iris based on external signals.
*Motorized focus lens and USB camera sold separately.
